| Motherboard | ITX |
|---|---|
| Max CPU Cooler Height | 67mm |
| SFX/SFX-L | GPU 345mm length-Within 65mm thickness (3 slots) |
|---|---|
| ATX140mm | GPU 345mm length-Within 45mm thickness (2 slots) |
- Case net weight:3.2±KG

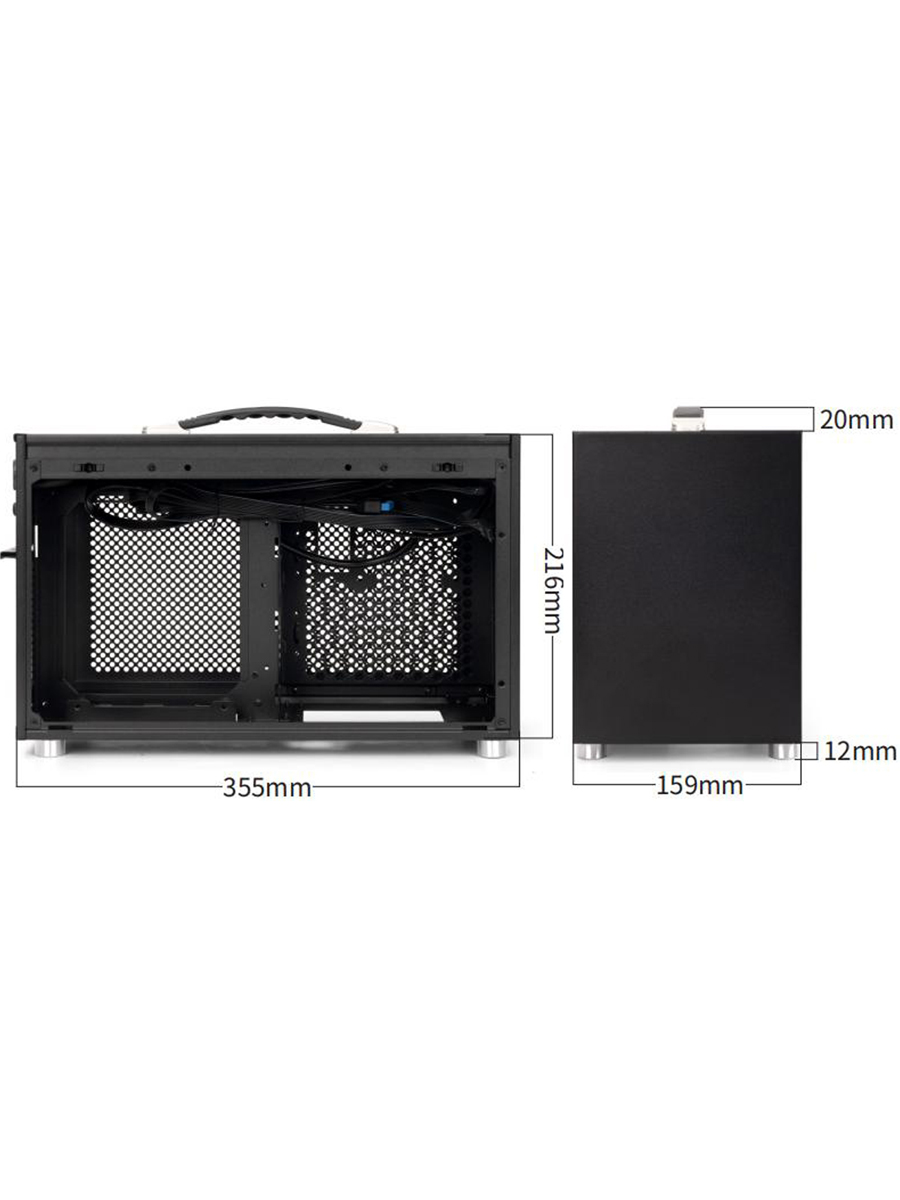

- Case size:(Length * width * height) : 355*159*216mm
- Material specification:0.8mm SPCC steel
- Pre-io:Metal power switch — Built-in led, USB3.0*1, TYPE-C 10G*1, headset two-in-one interface
- Standard configuration:dust screen, screw box
-
216mm height does not include 12mm foot pad height
-
Detachable handle
-
All metal side panel, no side penetration

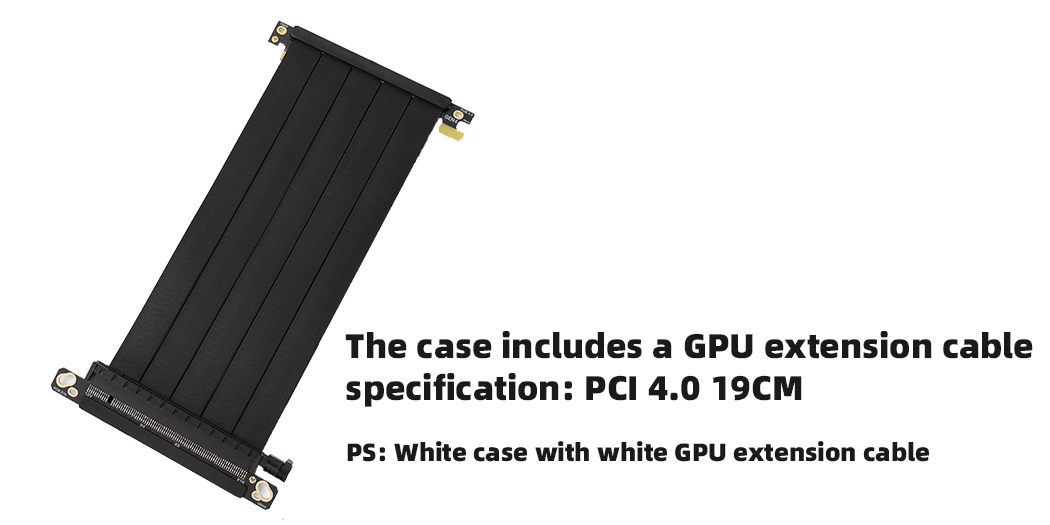

Includes PCI4.0 GPU extension cable. Please note that ATX14cm and SFX/L are different PSU cases, and the installation method of the extension cable is different. Please refer to the following scheme introduction

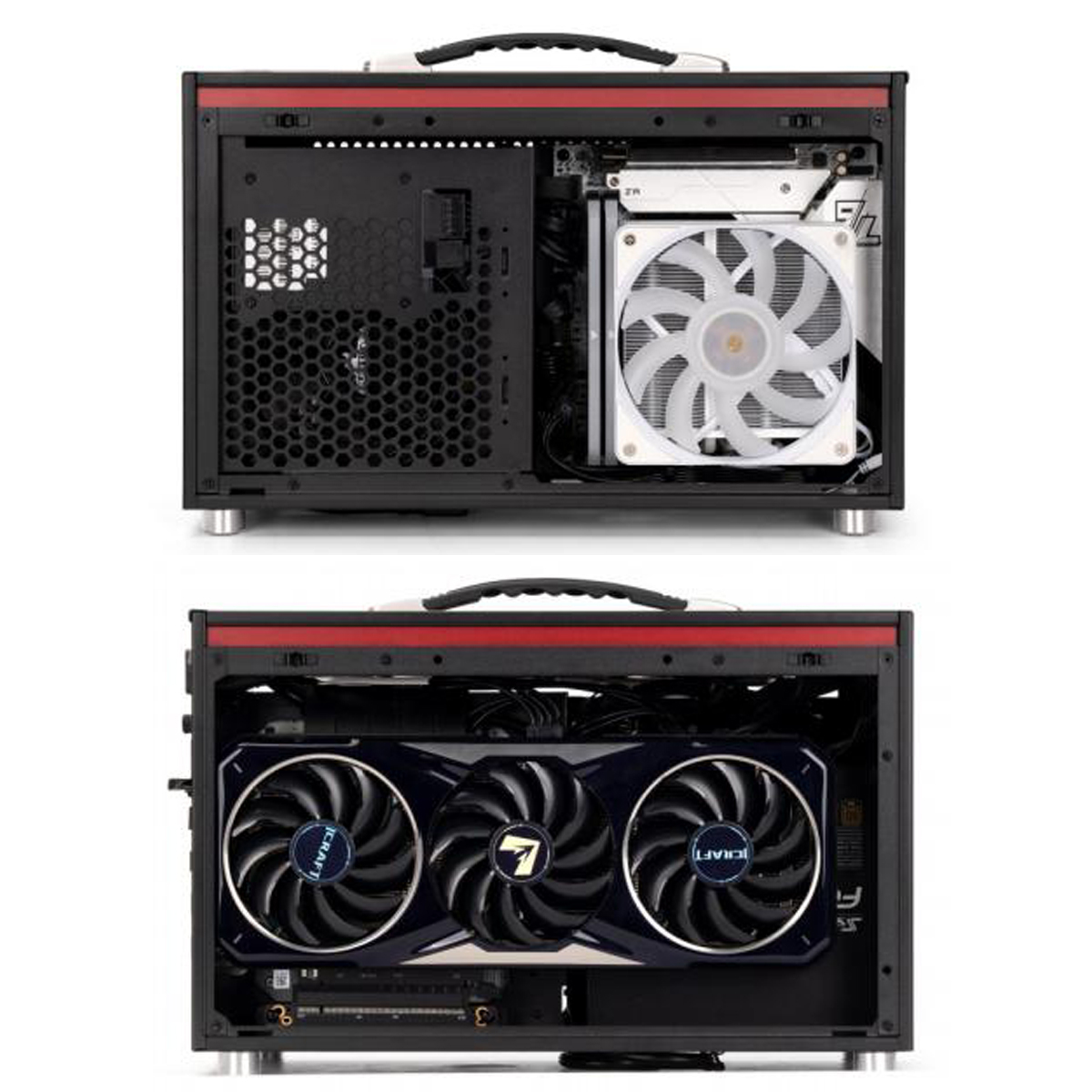

Main board:ITX
Cooler:Air cooling(height of 67mm)
PSU:ATX(within 14cm length)
GPU:within 345mm in length 2-slots(45mm)
Fan/Drive Mounts:
Top:12cm fans*2/12CM fan*1+3.5HDD*1
Front:(within 9mm thickness)2.5SSD*2

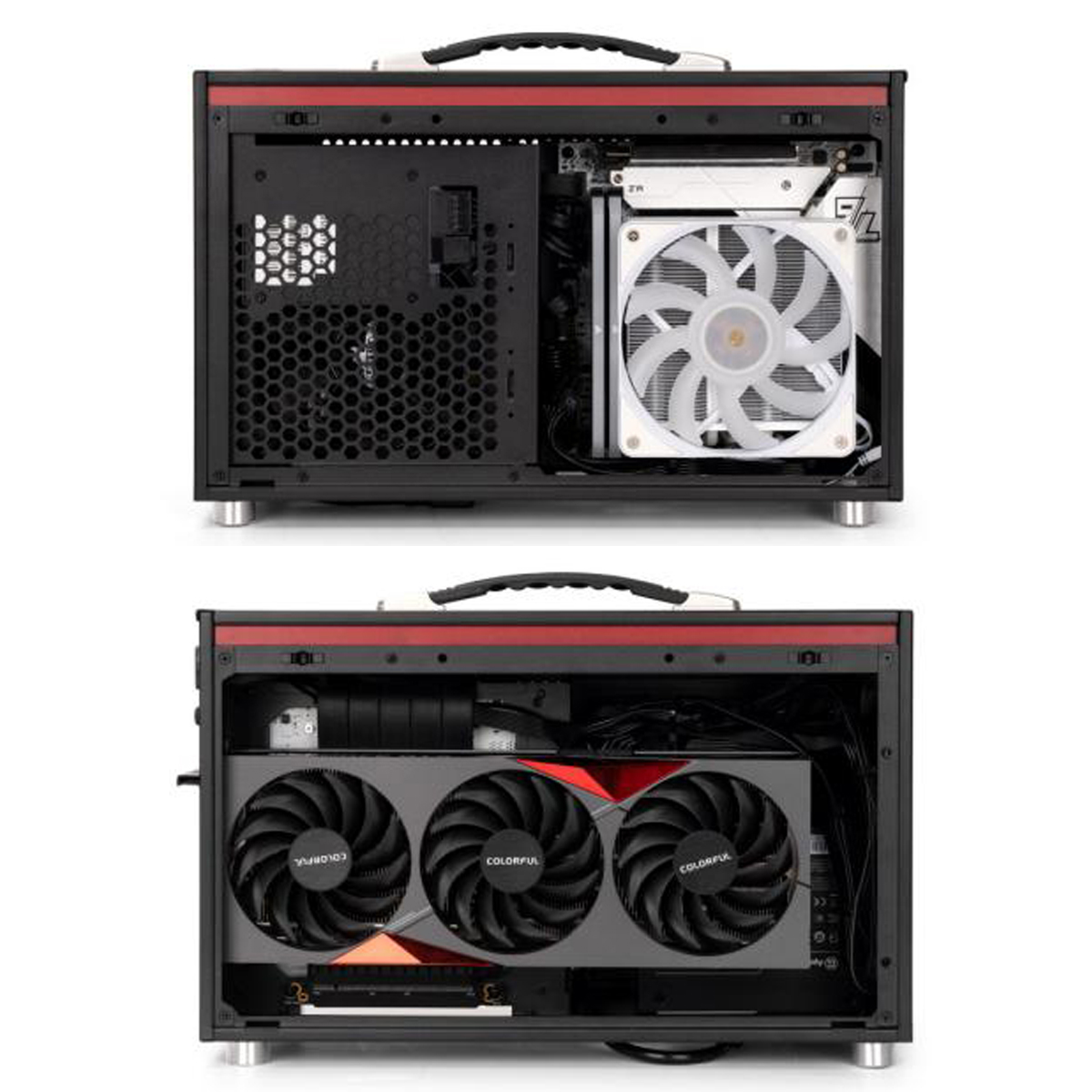

Main board:ITX
Cooler:Air cooling(height of 67mm)
PSU:SFX/SFX-L
GPU:within 345mm in length 3-slots(65mm)
Fan/Drive Mounts:
Top:12cm fans*2/12CM fan*1+3.5HDD*1
Front:(within 9mm thickness)2.5SSD*2

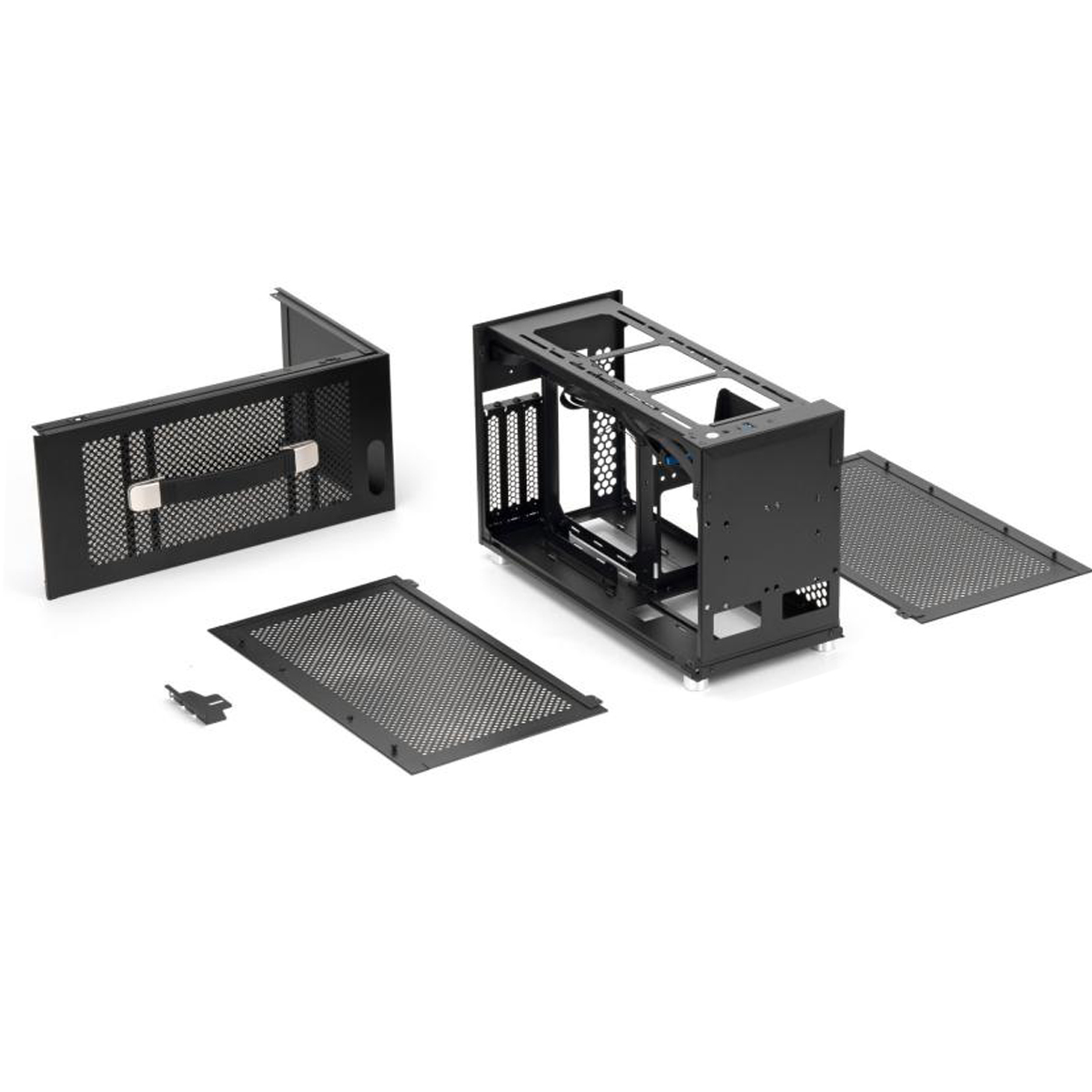

iF series products feature a dual-shellstructure with an outer case and innerframe. To assemble the components,first remove the outer case, including thepower supply bracket and graphics carddust guard. Once disassembled, freelyarrange suitable hardware installationson the inner frame.

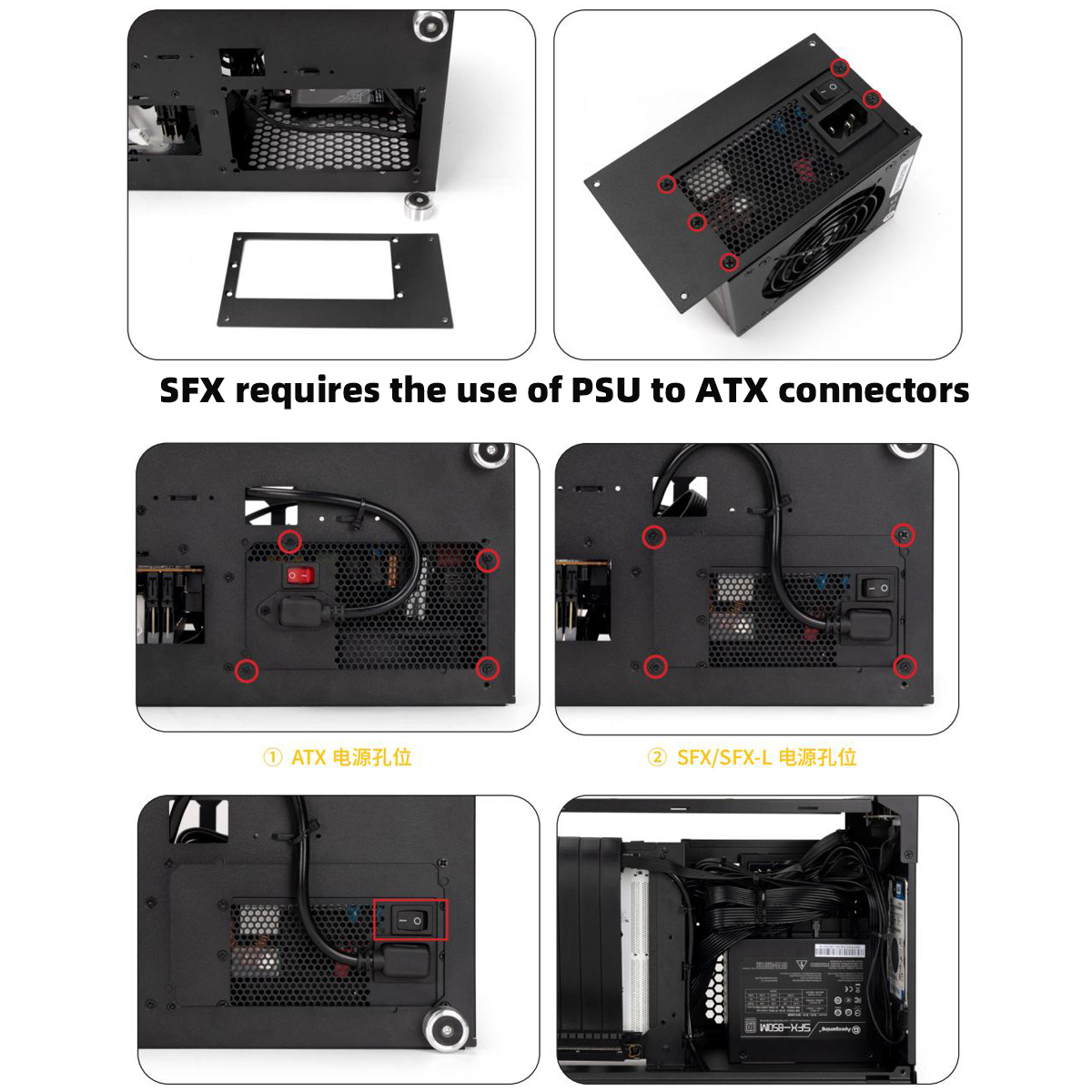

- SFX requires the use of PSU to ATX connectors
- The SFX to ATX connector must be installed as shown in the diagram, otherwise it may conflict with the GPU

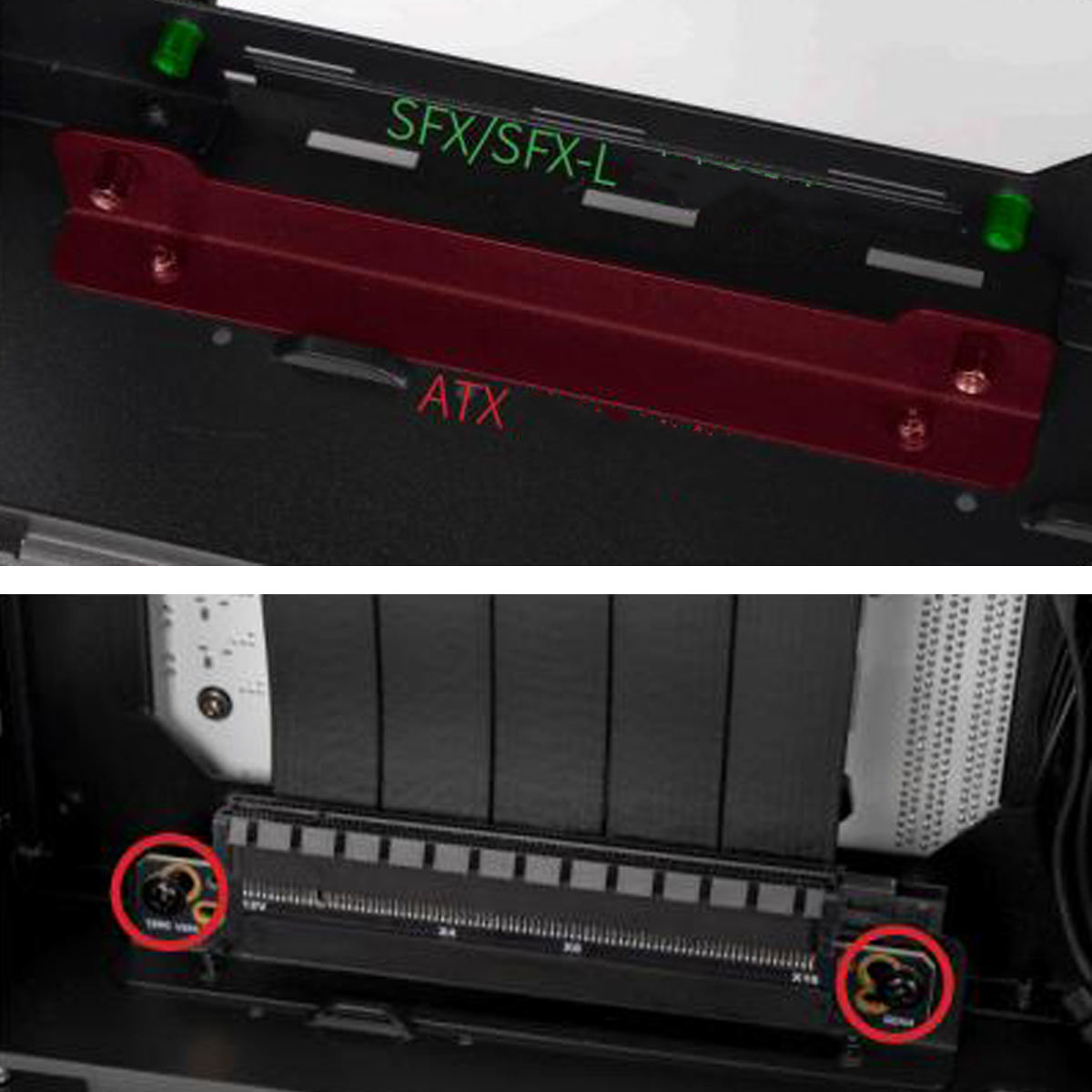

Use 2-slot and 3-slot GPU, install extension cables for tail synchronization, as shown in the figure

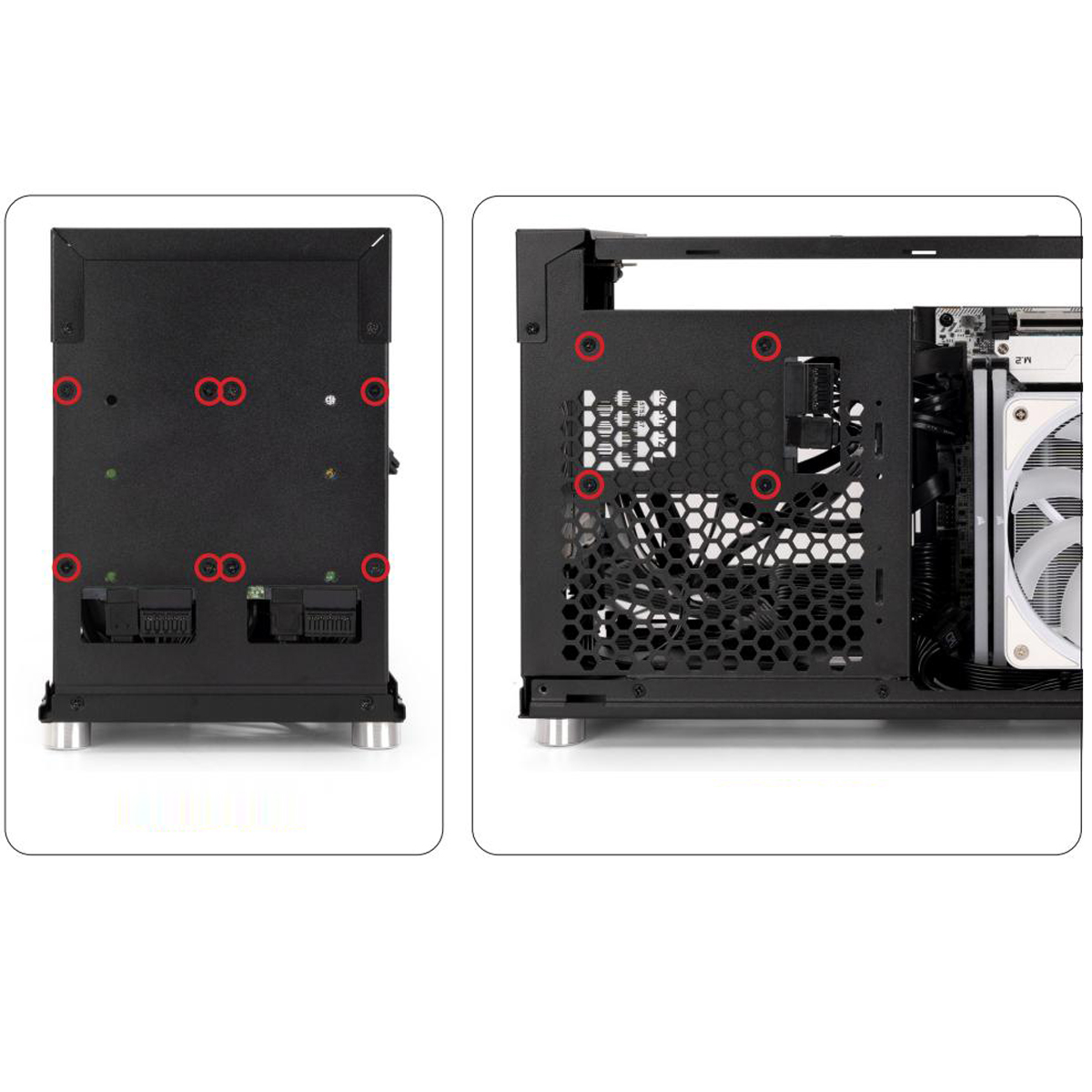

Up to 3 2.5-inch hard drives can be installed
